Aerial Works - Helicopter Longlines & Hooks

The ultimate longline for aerial works

Gottifredi Maffioli High-performance longlines range from 15 kN up to 120 kN of SWL, and now you got LOGGING & ELEKTRO version also available.

Our product range includes a wide set of complementary accessories for any need, customizable accordingly to your needs.

Aerial-works-products

Helipro99

Reach the highest SWL’s with the smaller diameter possible. Incomparable lightweight with extremely contained elongation under load: expressly developed for aerial works in partnership with the best professionals in the field.

Technical Specs

  • Triple braid
  • Core: Dyneema® SK99 with HTR proprietary treatment plus polyurethane coating
  • Internal braid: Kevlar® braid for thermal protection against short-duration accidental contacts with hot surfaces
  • Outer braid: H.T. Polyester with coloured pattern to identify and prevent rope torsion issues
  • End socket: Nitronic 50 stainless steel round thimbles with polyurethane encapsulation
  • Compliance: Machinery Directive 2006/42/CE – EASA CS-27./29.865 – EC Decision 2014/018/R, AMC1 SPO.SPEC.HESLO.100
  • Use: manual Longline for helicopter transportation of non-human loads (restrictions: NO LOGGING)
  • Available sizes: SWL’s from 10 kN up to 120 kN , lengths up to 60 m
  • Available colours: Blue-Black, Red-Black, Yellow-Black, Hi-Visibility (Yellow-Orange)


Helipro99-HiVisibility

Get over the toughest logging jobs with the extra strengthened version of the great HELIPRO99. Developed for aerial works in partnership with the best professionals in the field.

Technical Specs

  • Triple braid
  • Core: Dyneema® SK99 with HTR proprietary treatment plus polyurethane coating
  • Internal braid: Kevlar® braid for thermal protection against short-duration accidental contacts with hot surfaces
  • Outer braid: Dyneema®/H.T. Polyester blend with coloured pattern to identify and prevent rope torsion issues
  • End socket: Nitronic 50 stainless steel round thimbles with polyurethane encapsulation
  • Compliance: Machinery Directive 2006/42/CE – EASA CS-27./29.865 – EC Decision 2014/018/R, AMC1 SPO.SPEC.HESLO.100
  • Use: manual Longline for helicopter transportation of non-human loads (restrictions: NO LOGGING)
  • Available sizes: SWL’s from 10 kN up to 120 kN , lengths up to 60 m
  • Available colours: Blue-Black, Red-Black, Yellow-Black, Hi-Visibility (Yellow-Orange)


Helipro99 ELEKTRO

Reach the highest SWL’s with the smaller diameter possible. Incomparable lightweight with extremely contained elongation under load: expressly developed for aerial works in partnership with the best professionals in the field.

Technical Specs

  • Triple braid
  • Core: Dyneema® SK99 with HTR proprietary treatment plus polyurethane coating
  • Internal braid: Kevlar® braid for thermal protection against short-duration accidental contacts with hot surfaces + 6 insulated copper conductors, 1 mm² cross-section each
  • Outer braid: Dyneema®/H.T. Polyester blend  with coloured pattern to identify and prevent rope torsion issues.
  • End socket: Nitronic 50 stainless steel round thimbles with polyurethane encapsulation
  • Compliance: Machinery Directive 2006/42/CE – EASA CS-27./29.865 – EC Decision 2014/018/R, AMC1 SPO.SPEC.HESLO.100
  • Use: Electrified Longline for helicopter transportation of non-human loads (restrictions: NO LOGGING)
  • Available sizes: SWL’s from 10 kN up to 120 kN , lengths up to 60 m
  • Available colours: Blue-Black, Red-Black, Yellow-Black, Hi-Visibility (Yellow-Orange)

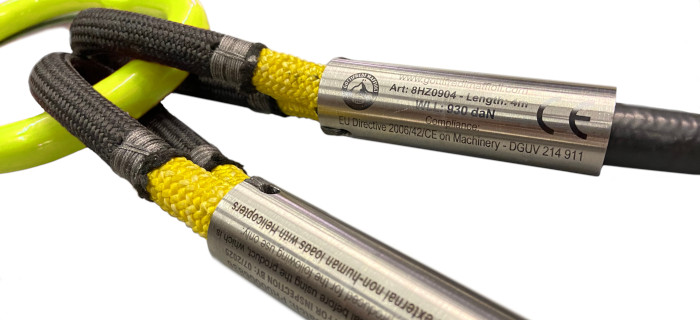

Aerial works accessory Spider Sling HESLO

Two or four-legged sling made out of Dyneema® SK78 to be used with HELIPRO99

  • Huge weight saving over steel wire rope or chain slings
  • Reduced aerodynamic drag
  • GUNNEBO self-locking hooks and masterlink
  • Application: HESLO 1, 2, 4 e 5 (NO LOGGING)

CE certification with SWL reclassification accordingly to DGUV information 214-911 “Sichere Einsätze von Hubschraubern bei der Luftarbeit” (Safe use of helicopters in aerial works)

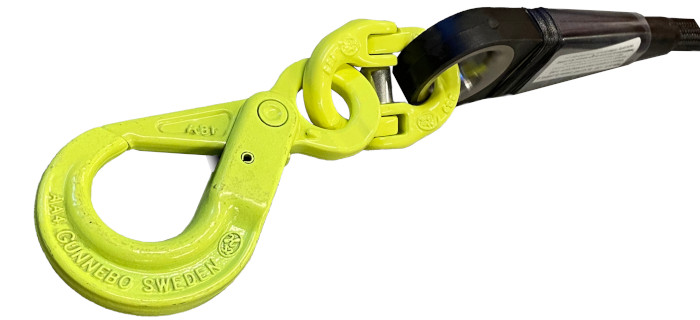

Gunnebo hooks and links

A wide range of accessories and tools are also available:

  • GUNNEBO full range of products
  • (Damper / Shock absorber) – COMING SOON
  • Additional protecting sheathings and covers
  • Custom-made solutions

For more information on these products, please contact us by filling out the following form; We will reply as soon as possible. Thanks.
